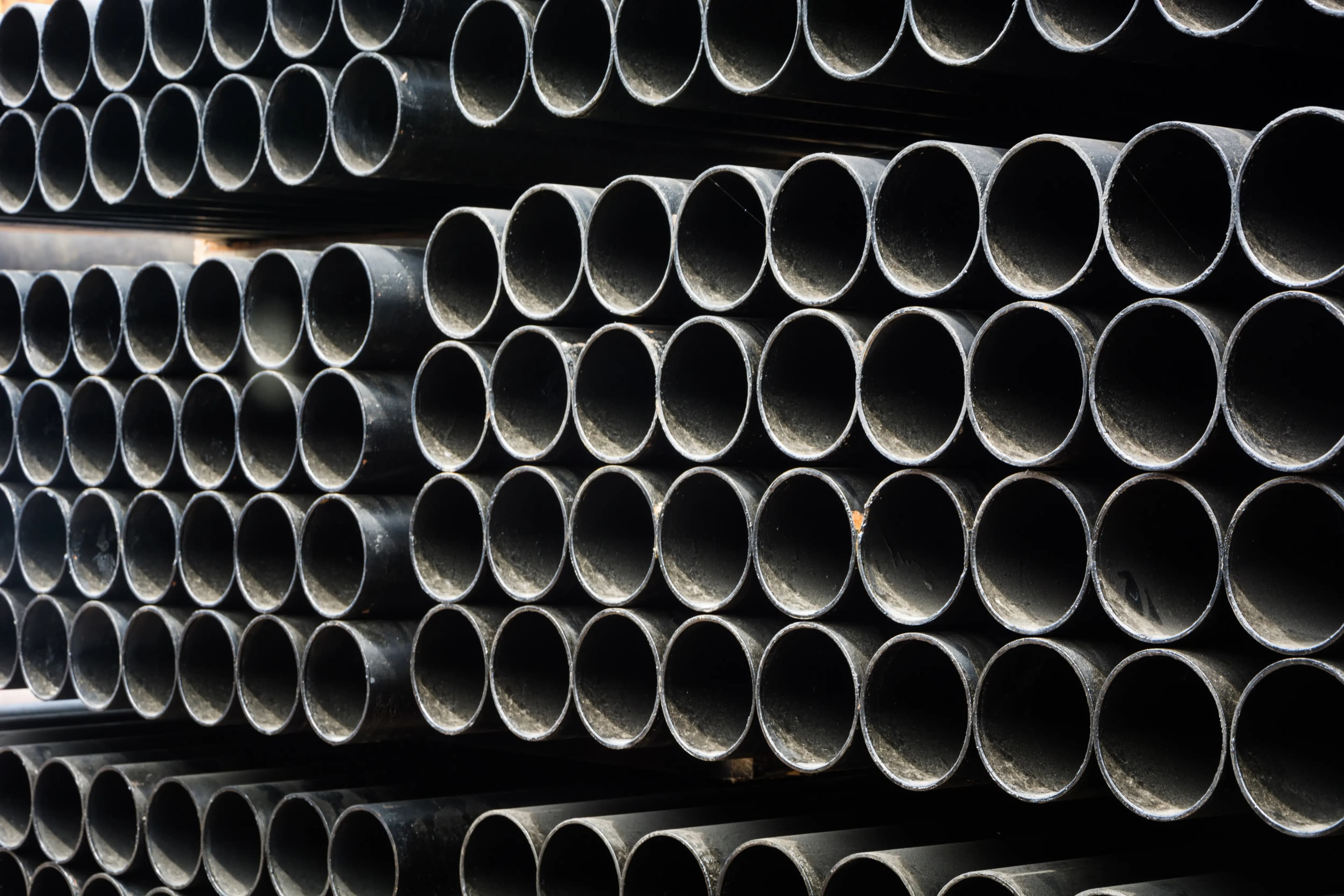

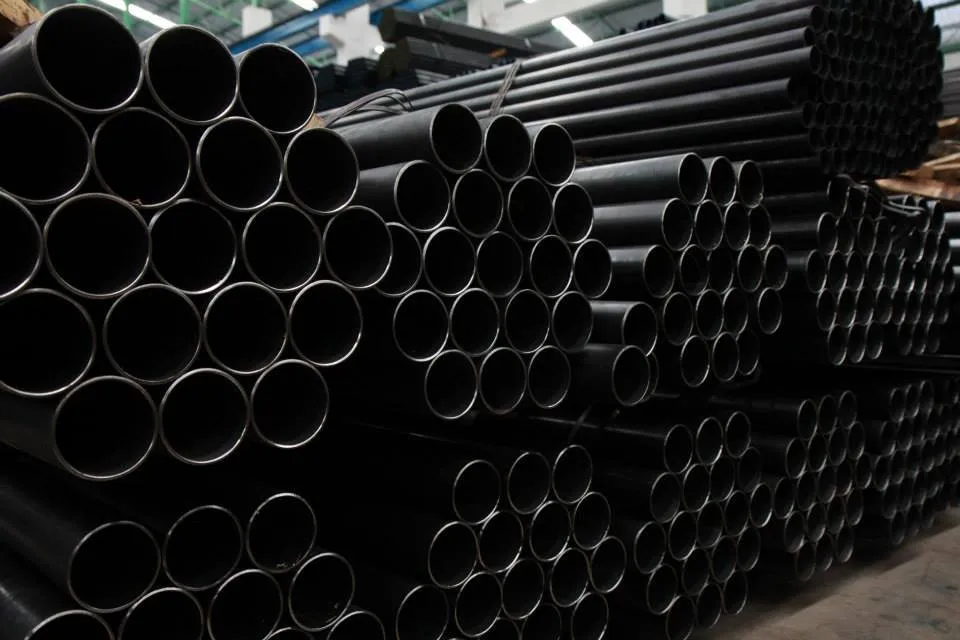

ERW Pipes

Conforming to IS 3589/API 5L Grade A/B/IS- 1979

It comes in range of 168.3mm OD to 508mm OD with wall thickness 5.4mm to 9.52mm as per IS 3589 & API 5L Grade A/B.

N.B (mm)	O.D. (mm)	Thickness (mm)	(kg/mtr)
150	168.30	5.40 - 7.00 [+] 5.40 7.00	21.69 - 27.84 [+] 21.69 27.84
200	219.10	4.30 - 9.50 [+] 4.30 5.00 5.40 6.00 6.35 7.00 8.00 9.50	22.78 - 49.10 [+] 22.78 26.40 28.46 31.53 33.31 36.61 41.65 49.10
250	273.10	4.30 - 9.50 [+] 4.30 5.00 5.40 6.00 6.35 7.00 8.00 9.50	28.50 - 61.75 [+] 28.50 33.60 35.65 39.52 41.77 45.93 52.30 61.75
300	323.90	5.00 - 9.52 [+] 5.00 5.40 6.00 6.35 7.00 8.00 9.52	39.32 - 73.65 [+] 39.32 42.41 47.04 49.73 54.70 62.32 73.65
350	355.60	5.40 - 9.50 [+] 5.40 6.00 6.35 7.00 8.00 9.50	46.63 - 81.08 [+] 46.63 51.73 54.69 60.18 68.57 81.08
400	406.04	5.40 - 9.52 [+] 5.40 6.00 6.35 7.00 8.00 9.52	53.40 - 92.98 [+] 53.40 59.24 - 68.94 78.59 92.98
450	457.00	6.00 - 9.50 [+] 6.00 6.35 7.00 8.00 9.50	62.34 - 104.84 [+] 62.34 - 77.68 88.58 104.84
500	508.00	6.00 - 9.52 [+] 6.00 6.35 7.00 8.00 9.52	74.27 - 116.78 [+] 74.27 - 86.48 98.64 116.78
